| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | conventional |
| Delivery Period: | Customized |
| Payment Method: | L/C |
| Supply Capacity: | Negotiable |
Easy Operate Hydrogen Production From Methanol Pressure Swing Adsorption

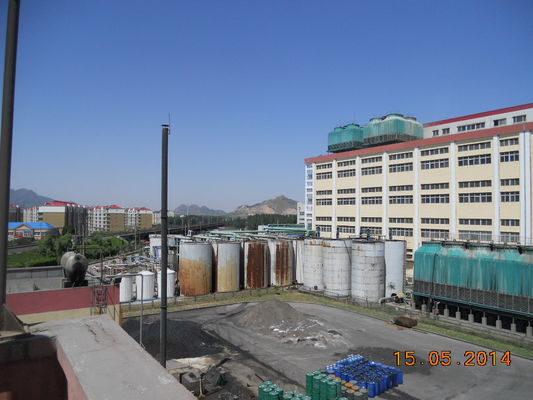

Qinhuangdao Lihua 1000Nm3/H Hydrogen Production From Methanol
Technology Application:
Methanol and deionized water are mixed evenly. After vaporization and overheating, under certain conditions of temperature, pressure and catalyst, mixed raw material for reforming reaction to produce reforming gas containing H2, CO and CO2. After pressure swing adsorption(PSA) separation and purification, high purity hydrogen product is prepared.
Technical indexes:
purity: 99%~99.999%
Capacity: 25~100000Nm3/h
Yield :≥90%
Features and advantages:
The methanol has a high conversion rate (≥95%) and low consumption. The Two-high THiPSATM technology is applied.
The raw material of start-up methanol is closed-loop recycled, being energy saving and environmentally friendly.
Special adsorbent/catalyst has a long service life and low operating cost.
Special programmable control valve is of high automatic degree.
Reference
|
|
