| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | conventional |
| Delivery Period: | 3 months |
| Payment Method: | L/C |
| Supply Capacity: | Negotiable |

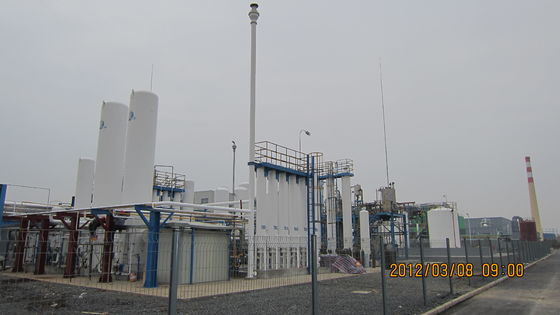

Economical Hydrogen Production From Methanol 500Nm3/H Skid Mounted
Yingde 500Nm3/h Hydrogen Production From Methanol
Technology Application:
Methanol and deionized water are mixed evenly. After vaporization and overheating, under certain conditions of temperature, pressure and catalyst, mixed raw material for reforming reaction to produce reforming gas containing H2, CO and CO2. After pressure swing adsorption(PSA) separation and purification, high purity hydrogen product is prepared.
Zeolite molecular sieve adsorbent is crystalline partial is alumina silicate containing alkaline earth elements, which belongs to the strong polar adsorbent, with consistent pore structure and very strong adsorption selectivity. For the complex source in practical applications often require a variety of adsorbents, fill them in different layers according to adsorption properties form a composite adsorbent bed in order to separate the required components.
The company will invest and plan the production base covering an area of 40,000 square meters, the plant covering an area of 30,000 square meters, nearly 5,000 square meters of valve manufacturing workshop, more than 10,000 square meters of non-standard container workshop and 15,000 square meters of the skid-mounted workshop. Complete equipment, refined processed machinery, δ90mm veneer reeling machine, δ14 plate shears, 12m edge planer, automatic welding machine, mirror polishing machine, φ4000 vertical lathe, 15 ordinary lathes, 10 CNC lathes, 8m double-housing planer, 3800-ton oil hydraulic press, 4500-ton oil hydraulic press, 10-ton, 20-ton, 50-ton and 100-ton lifting machine and other large-scale equipment, complete testing equipment with non-destructive testing (high power γ-source testing machine) and physical and chemical analysis, 6 m × 7 m × 20 m heat treatment furnace and a well-equipped welding laboratory, and 5 sets of valve testing equipment. More than 100 staffs in the base.
Qualified to design and manufacture ASME U, U2, and GB A1, A2 pressure vessels, to install pressure pipes and to manufacture pressure pipe components. Qualified to design and manufacture Class I, Class II and Class III pressure vessels and Grade B valves, and have obtained the quality certificate of GB/T19001:2015-ISO9001:2015. And have established a comprehensive quality assurance system.
Technical indexes:
purity: 99%~99.999%
Capacity: 25~100000Nm3/h
Yield :≥90%
Features and advantages:
The methanol has a high conversion rate (≥95%) and low consumption. The Two-high THiPSATM technology is applied.
The raw material of start-up methanol is closed-loop recycled, being energy saving and environmentally friendly.
Special adsorbent/catalyst has a long service life and low operating cost.
Special programmable control valve is of high automatic degree.
Process Schematic
|
|
