| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | conventional |
| Delivery Period: | Customized |
| Payment Method: | L/C |
| Supply Capacity: | Negotiable |
Petrochemical PSA Hydrogen Plant 65390Nm3 For High Purity Hydrogen Proton

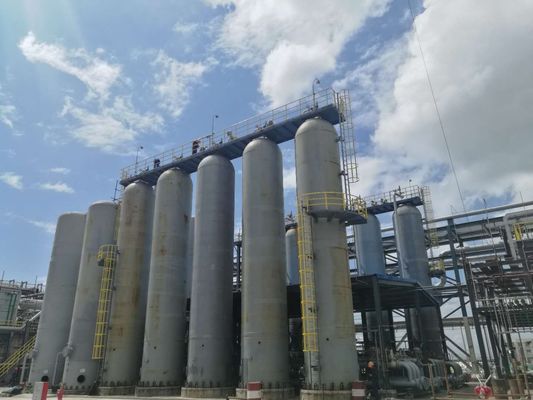

Fujian Zhongjiang Petrochemical 65390Nm³/H PSA Hydrogen Plant
Technology Application:
Hydrogen-rich gas is separated and purified for high purity hydrogen and proton
membrane fuel cell hydrogen standards(ISO 14687) through double high pressure swing adsorption technology(THiPSATM).
Absorption
After feed gas enters absorption tower from the bottom, impure components in feed gas will be absorbed on a selective basis by multiple kinds of adsorbents. Hydrogen not absorbed will be used as product gas and conveyed to user. With this step, conforming product gas can be obtained.
Technical indexes:
Purity: ≥99.999%
Capacity: 200~10000Nm3/h
Features and advantages:
High purity :≥99.999%
High yield:≥85%(at least 5% higher than traditional PSA technology).,
Advantage:
Mature process technology and safe and reliable operation.
Special programmable control valve with high level ofautomatic.
Short cycle of project construction and investment recovery rate.
| Serial number | Project name and scale | Construction site | Time |
| 1 | 2500Nm³/h Methanol conversion-PSA hydrogen generation | Shandong Dongying | 2011 |
| 2 | 2500Nm³/h Methanol conversion-PSA hydrogen generation | Ningxia Yinchuan | 2012 |
| 3 | 2×1500Nm³/h Methanol conversion-PSA hydrogen generation | Liaoning Lighthouse | 2006 |
| 4 | 3000Nm³/h Methanol conversion-PSA hydrogen generation | Shandong Caoxian County | 2009 |
| 5 | 3000Nm³/h Methanol conversion-PSA hydrogen generation | Jiangsu Taizhou | 2009 |
| 6 | 3000Nm³/h Methanol conversion-PSA hydrogen generation | Jiangsu Jiangyin | 2010 |
| 7 | 3506Nm³/h Methanol conversion-PSA hydrogen generation | Dalian, Liaoning | 2013 |
| 8 | 4000Nm³/h Methanol conversion-PSA hydrogen generation | Hunan Yiyang | 2011 |
| 9 | 4000Nm³/h Methanol conversion-PSA hydrogen generation | Shaanxi Yulin | 2012 |
| 10 | 4000Nm³/h Methanol conversion-PSA hydrogen generation | Shaanxi Shenmu | 2012 |
| 11 | 4300Nm³/h Methanol conversion-PSA hydrogen generation | Zhejiang Zhoushan | 2008 |
| 12 | 5000Nm³/h Methanol conversion-PSA hydrogen generation | Shandong Dongying | 2013 |
| 13 | 7000Nm³/h Methanol conversion-PSA hydrogen generation | Ningbo | 2012 |
| 14 | 8400Nm³/h Methanol conversion-PSA hydrogen generation | Shanxi Hongdong | 2009 |
| 15 | 8400Nm³/h Methanol conversion-PSA hydrogen generation | Shanxi Hongdong | 2011 |
| 16 | 12000Nm³/h Methanol conversion-PSA hydrogen generation | Ningxia Shizuishan | 2014 |
| 17 | 15000Nm³/h Methanol conversion-PSA hydrogen generation | Inner Mongolia Erdos | 2014 |
| 18 | 20000Nm³/h Methanol conversion-PSA hydrogen generation | Xinjiang | 2014 |
| 19 | 10000 Nm³/h Methanol conversion-PSA hydrogen generation | Ningxia Yinchuan | 2014 |
| 20 | 20000 Nm³/h Methanol conversion-PSA hydrogen generation | Jilin | 2014 |
|
|
