Product Details
Place of Origin: China
Brand Name: Techairs
Model Number: PSA
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: conventional
Delivery Time: Customized
Payment Terms: L/C, T/T
Supply Ability: Negotiable
Product Name: |
Dalian HengLiPec 900Nm3/h Hydrogen Generation Plants |
Scale: |
900Nm3/h |
Place: |
Dalian |
Application: |
Hydrogen Production From Methanol |
Raw Gas: |
Methanol |
Time: |
2013 |
Client: |
Dalian HengLiPec |
Characteristic: |
Autonomy |
Product Name: |
Dalian HengLiPec 900Nm3/h Hydrogen Generation Plants |
Scale: |
900Nm3/h |
Place: |
Dalian |
Application: |
Hydrogen Production From Methanol |
Raw Gas: |
Methanol |
Time: |
2013 |
Client: |
Dalian HengLiPec |
Characteristic: |
Autonomy |
Steam Reforming Process Hydrogen Production From Methanol 900Nm3/H

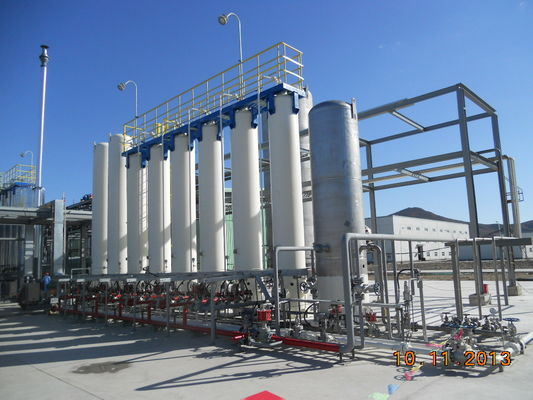

Dalian HengLiPec 900Nm3/h Hydrogen Generation Plant,Hydrogen Production From Methanol
Technology Application
Using methanol as raw material, crude hydrogen (mainly CO2, H2, and trace CO, CH4) is produced by steam cracking process, and then purified by pressure swing adsorption technology to obtain hydrogen with purity meeting the requirements of users.
The raw methanol and raw desalted water are premixed at a certain ratio, pressurized by metering pump, preheated, gasified and superheated, and then enter the reactor. Under the action of catalyst, the reaction is carried out to generate crude hydrogen. After heat exchange, the heat is recovered, cooled, and then enter the pressure swing adsorption device for final purification.
The raw material vaporization process
Refers to the raw liquid vaporization under pressurized conditions, methanol and desalted water mixed in a certain portion, and pressured into the system of preheating, vaporization, heating to the conversion temperature by pump.
The purpose of this procedure is to provide a set of conditions such as the ratio of raw materials and the conversion temperature for the catalytic conversion of methanol.
Technical indexes
Capacity:900Nm3/h
Purity:99% ~ 99.999%
Features and advantages:
Mature process technology and safe and reliable operation.
Wide source of raw material and large processing scale.
Advanced recovery technology of thermal energy and low consumption of production energy.
